How to Test a Fuel Pump Relay Without a Multimeter: Easy Steps

Is your vehicle acting up, and you suspect the fuel pump relay might be the culprit? You don’t need expensive tools or a mechanic to check it out.

What if I told you that you can test your fuel pump relay quickly and easily without even using a multimeter? In this guide, you’ll discover simple, step-by-step methods that anyone can follow. By the end, you’ll know exactly how to find out if your fuel pump relay is working or needs replacing—saving you time, money, and stress.

Keep reading, because your car’s health depends on it.

Credit: www.youtube.com

Signs Of A Faulty Fuel Pump Relay

A fuel pump relay controls the power to the fuel pump. It helps send fuel to the engine. A faulty relay can cause engine problems. Knowing the signs helps detect issues early. This saves time and money on repairs.

Here are common signs that show a fuel pump relay might be faulty. These signs are easy to notice without special tools.

Engine Won’t Start

The engine may crank but not start. This happens because the fuel pump does not get power. No fuel reaches the engine for combustion. This is a clear sign of relay failure.

Intermittent Engine Stalling

The engine may stall while driving. It cuts off suddenly and then starts again. The relay might be failing to supply steady power. This causes the fuel pump to stop working randomly.

Clicking Noise From The Relay

You may hear a clicking sound near the fuel tank. This happens when the relay tries to activate the pump. A weak or faulty relay clicks but does not send power. This sound is a strong clue.

Car Fails To Start After Sitting

The car may not start after sitting for a long time. The relay can fail to send power the first time. After a few tries, it might work again. This is a sign of relay wear or damage.

Engine Runs Rough Or Hesitates

The engine may run unevenly or hesitate during acceleration. Lack of fuel supply causes this problem. A bad relay causes fuel pump issues that affect engine performance.

Credit: www.clarks-garage.com

Tools Needed For Testing Without A Multimeter

Testing a fuel pump relay without a multimeter is possible with a few simple tools. These tools help you check the relay’s function safely and easily. Knowing what to use saves time and avoids guesswork.

Each tool has a specific role. They help you see if the relay clicks and if power flows correctly. Here are the essential tools for the job.

Flathead Screwdriver

A flathead screwdriver helps you remove the relay from its socket. It can also assist in gently prying open parts if needed. Choose one that fits well to avoid damage.

12-volt Test Light

A test light shows if power reaches the relay. It lights up when current flows. This tool is easy to use and very helpful for quick checks.

Spare Relay Or Relay Jumper Wire

Having a spare relay lets you swap and test quickly. A jumper wire can mimic the relay’s function to check if the fuel pump runs. Both options help identify relay problems fast.

Basic Hand Tools

Tools like pliers and wrenches help access the relay and wiring. Keep them handy for loosening or tightening connections. They make the testing process smoother.

Step-by-step Manual Relay Testing

Testing a fuel pump relay without a multimeter is possible with a few simple steps. This method helps you check if the relay works or if it needs replacement. You only need basic tools and some patience. Follow each step carefully to avoid mistakes.

Locate The Fuel Pump Relay

First, find the fuel pump relay in your vehicle. Check the owner’s manual for its exact location. It is usually in the fuse box under the hood or inside the cabin. The relay looks like a small square or rectangle with several metal pins. Make sure the engine is off before you touch anything.

Check For Clicking Sound

Turn the ignition key to the “on” position without starting the engine. Listen closely near the relay for a clicking sound. The click means the relay is switching on and off. No sound could mean the relay is faulty. You may need to repeat this step a few times to be sure.

Swap With A Similar Relay

Find another relay of the same type in the fuse box. Remove the suspected relay and swap it with the known good one. Try starting the engine after the swap. If the engine starts, the original relay is bad. If it does not, the problem might be elsewhere.

Use A Test Light Or Battery

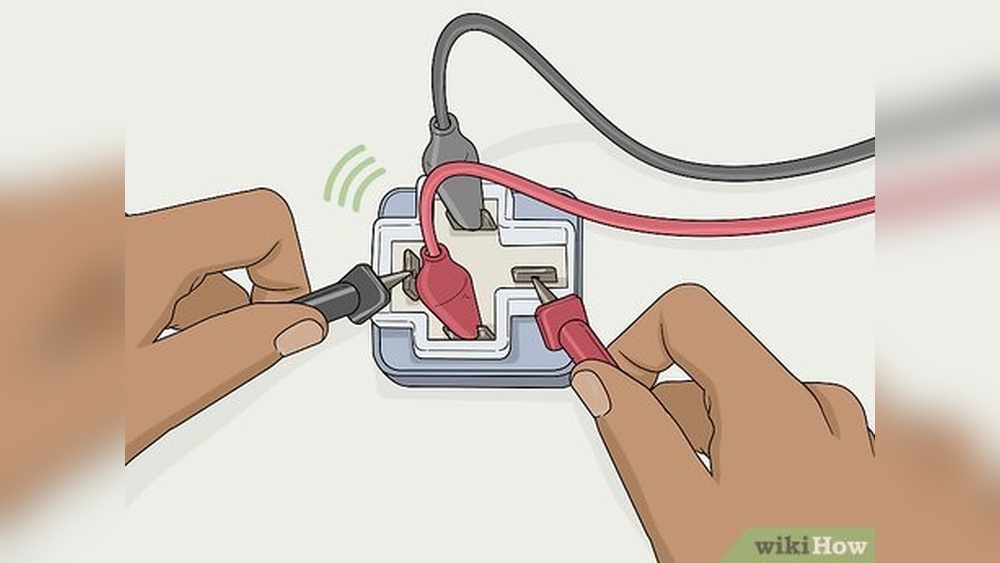

Use a test light to check power at the relay socket. Connect the test light clip to a ground point. Touch the test light probe to each socket terminal. The light should turn on for the power terminals. Alternatively, connect a 12-volt battery to the relay coil terminals. You should hear a click if the relay is good.

Safety Tips During Testing

Testing a fuel pump relay without a multimeter requires care. Safety must come first. Ignoring safety can cause injury or damage. Follow simple rules to protect yourself and your vehicle.

Wear Protective Gear

Always wear safety glasses to protect your eyes. Use gloves to keep your hands safe from sharp parts. Wear long sleeves to avoid skin contact with fuel or dirt.

Work In A Well-ventilated Area

Fuel fumes can be harmful. Test the relay in a place with fresh air. Avoid closed spaces to reduce the risk of inhaling fumes.

Disconnect The Battery

Remove the negative terminal from the battery. This stops electrical shocks and short circuits. It also prevents accidental starting of the engine.

Avoid Open Flames And Sparks

Fuel is highly flammable. Keep away any flames, sparks, or smoking materials. Do not use tools that create sparks near the fuel system.

Keep A Fire Extinguisher Nearby

Have a fire extinguisher ready before starting the test. Choose one rated for electrical and fuel fires. It helps handle emergencies quickly.

Handle The Relay Carefully

Do not force the relay out of its socket. Pull it gently to avoid damage. Avoid touching relay terminals with wet or oily hands.

Credit: www.youtube.com

Frequently Asked Questions

How Can I Test A Fuel Pump Relay Without A Multimeter?

You can test a fuel pump relay by swapping it with a similar relay in your car. Listen for a clicking sound when the ignition is on. This sound shows the relay is working.

What Signs Show A Faulty Fuel Pump Relay?

A faulty relay may cause the engine not to start or stall. You might also hear no clicking sound when turning the key. Check for these signs before testing.

Can I Use A 12v Battery To Test The Relay?

Yes, connect the relay’s coil terminals to a 12V battery to hear a click. This click means the relay coil is working. Be careful to connect the terminals correctly.

Why Does The Fuel Pump Not Work Without A Relay?

The relay sends power to the fuel pump when the engine starts. Without it, the pump won’t get electricity and can’t work. Testing the relay helps find this issue.

Conclusion

Testing a fuel pump relay without a multimeter is simple and doable. You only need basic tools and some patience. Checking the relay helps spot problems early. This keeps your vehicle running smoothly and saves money. Use the steps carefully for best results.

Stay safe and take your time. Now, you can test the relay confidently without special tools.
